Engine Coolant Heater Control Replacement (Receiver Control Module)

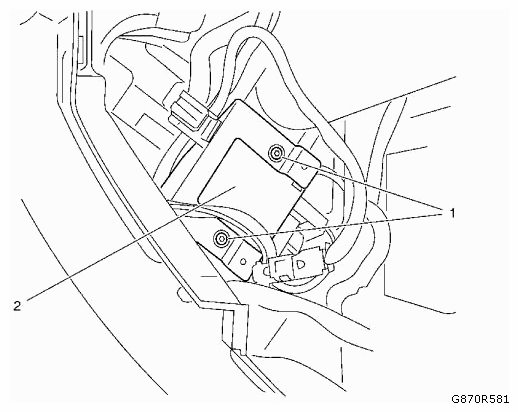

Fig 1: Identifying Engine Coolant Heater Receiver Control Module And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the engine coolant heater control module. Refer to ENGINE COOLANT HEATER CONTROL MODULE REPLACEMENT .
1	Engine Coolant Heater Receiver Control Module Fastener (Qty: 2) Procedure Disconnect the antenna. Disconnect the electrical connector.
2	Engine Coolant Heater Control (Receiver Control Module)
