Fuel Pump Flow Control Module Replacement

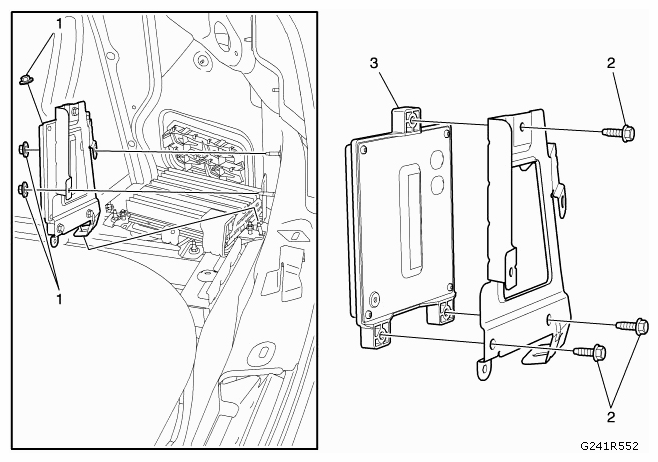

Fig 1: Identifying Fuel Pump Flow Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear compartment side trim panel. Refer to REAR COMPARTMENT SIDE TRIM PANEL REPLACEMENT .
1	Fuel Pump Flow Control Module Bracket Fastener (Qty: 3) Refer to FASTENER CAUTION . Procedure  Disconnect the fuel pump flow control module electrical connector. Tighten  9 Nm (80 lb in)
2	Fuel Pump Flow Control Module Fastener (Qty: 3) Procedure  Separate the fuel pump flow control module from the fuel pump flow control module bracket. Tighten  6, 5 Nm (58 lb in)
3	Fuel Pump Flow Control Module
