Removal Procedure

WARNING:
  • Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module (battery cable, powertrain control module (PCM)/engine control module (ECM)/transaxle control module (TCM) pigtail, control module fuse, jumper cables, etc.) in order to prevent internal control module damage.
  • Damage to the control unit can occur if the metal cover comes into contact with battery voltage. Ensure that the control unit's metal cover does NOT come into contact with battery voltage when servicing the control unit, using quick charge cables or charging the vehicle's battery.
  • In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board.
  • Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets when diagnosing or replacing the control module. Ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module.
  • The replacement control module must be programmed.
NOTE: It is necessary to record the remaining engine oil life. If the replacement module is not programed with the remaining engine oil life, the engine oil life will default to 100 percent. If the replacement module is not programmed with the remaining engine oil life, the engine oil will need to be changed at 5 000 km (3, 000 mi) from the last engine oil change.
  1. Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
  2. Record the preset radio stations.
  3. Turn the ignition OFF.
  4. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  5. Lift and gently pull the engine control module (ECM) up and out of the retainer on the battery tray.
  6. Disconnect the engine wiring harness electrical connectors (1) from the ECM.

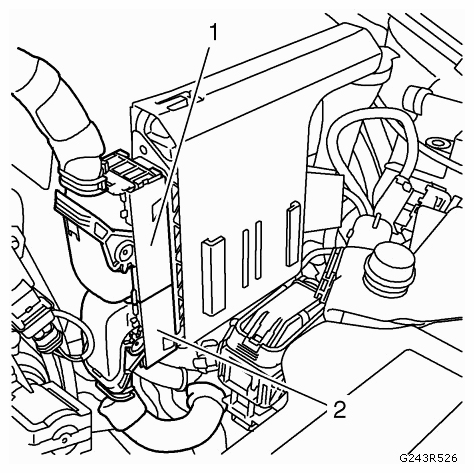

    Fig 1: Identifying Engine Wiring Harness Electrical Connectors
    G09407821Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Disconnect the body wiring harness electrical connector (2) from the ECM.
