Installation Procedure

  1. Connect the engine wiring harness electrical connectors (1) to the ECM.

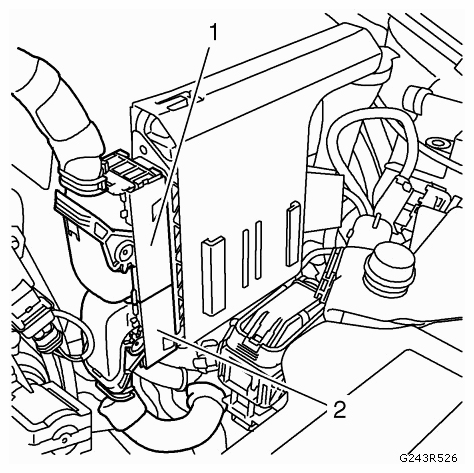

    Fig 1: Identifying Engine Wiring Harness Electrical Connectors
    G09407822Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the body wiring harness electrical connector (2) to the ECM.
  3. Position the ECM above the retainer in the battery tray and slide the ECM down into the retainer.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  5. Reset the clock and preset radio stations.
  6. If a NEW ECM was installed, the ECM must be programmed. Refer to CONTROL MODULE REFERENCES for programming and set up information.
