Windshield Wiper System Module Replacement

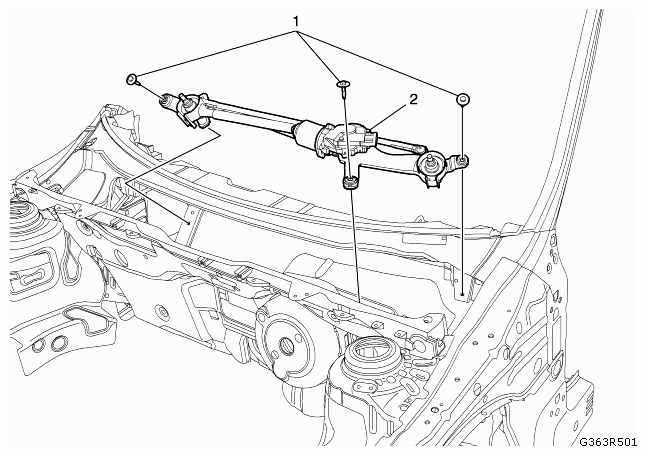

Fig 1: Identifying Windshield Wiper System Module And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
1	Windshield Wiper System Module Fastener (Qty: 3) Refer to FASTENER CAUTION .
2	Windshield Wiper System Module Procedure  Disconnect the electrical connector from the wiper motor. Carefully lift the windshield wiper system module out of the plenum.
