Steering Wheel Control Switch Assembly Replacement

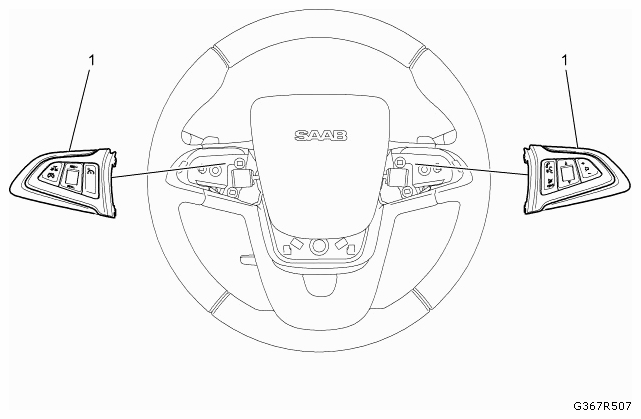

Fig 1: Identifying Steering Wheel Control Switch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Loosen the inflatable restraint steering wheel module for access. See STEERING WHEEL INFLATABLE RESTRAINT MODULE REPLACEMENT .
1	Steering Wheel Control Switch Assembly Procedure  Pull out the control switches using a trim tool. Release all the retainers and release the electrical connectors. Remove the steering wheel control switches.
