Remote Entry Power, Ground, Serial Data, and Control Module: Notes

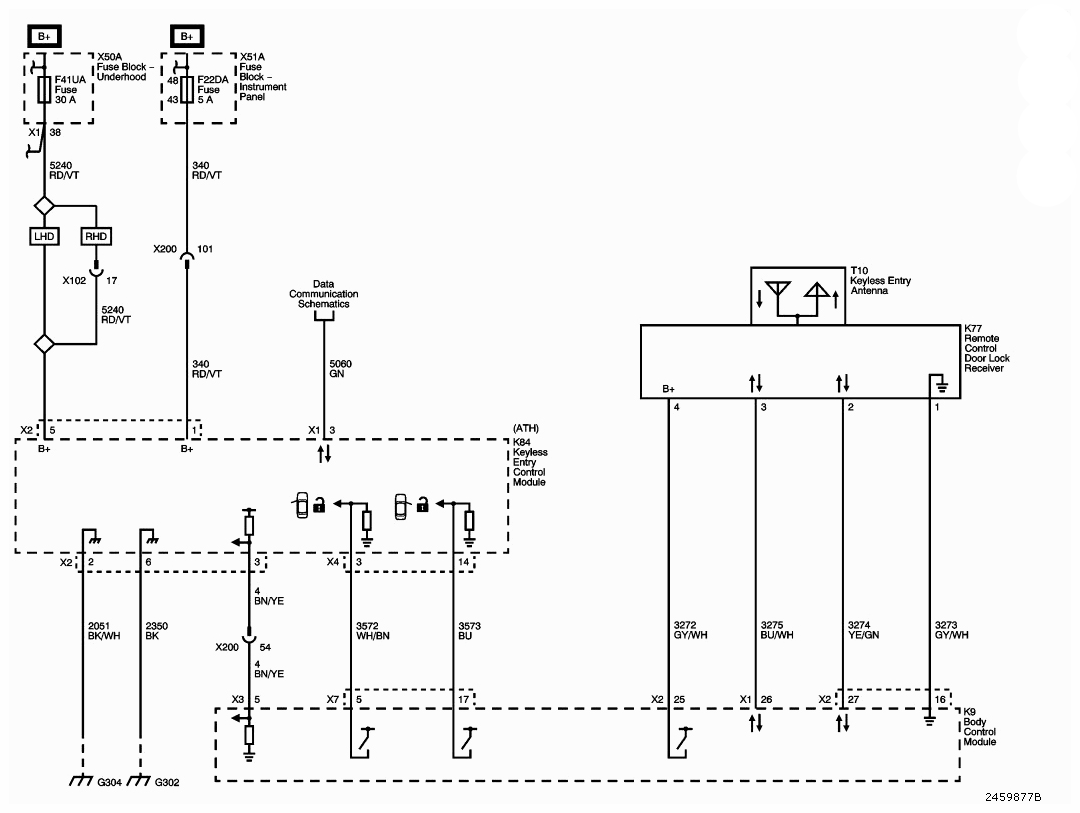

Fig 1: Remote Entry Power, Ground, Serial Data, And Control Module - Wiring Diagram

G09435595

Courtesy of SAAB-SCANIA OF AMERICA, INC.
