Keyless Entry Control Module Replacement

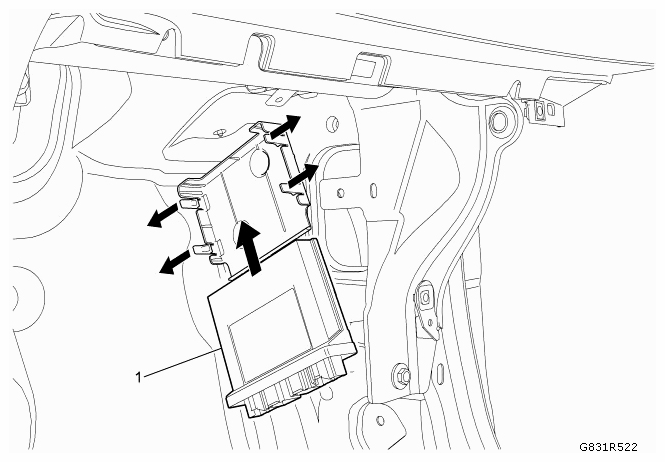

Fig 1: Installing Keyless Entry Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel insulator panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE
1	Keyless Entry Control Module Procedure  Disconnect wiring harness connectors. Unsnap the module from the bracket. For programming and set up information, refer to CONTROL MODULE REFERENCES .
