Home >> Saab >> 2010 >> 9-3X Automatic >> Repair and Diagnosis >> Transmission >> Transfer Case >> All-Wheel Drive >> Component Locator >> Connector H10-5

Connector H10-5

Location: blue connector in a plastic box on the beam on the right-hand side of the fuel tank

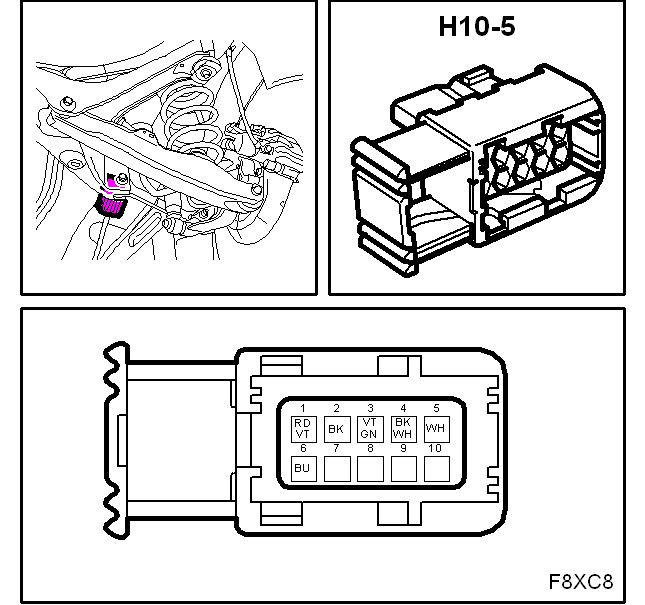

Fig 1: Identifying Connector H10-5

G05570699

Courtesy of SAAB-SCANIA OF AMERICA, INC.
