Connected components

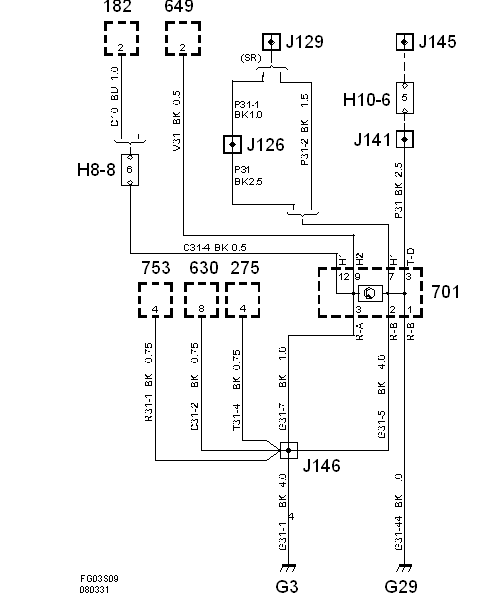

GROUNDING POINT G3, 4D REFERENCE
| Via Crimp connection J146, rear harness | |
| 182 | Unit, sunroof |
| 275 | Horn, anti-theft alarm |
| 630 | Control module, SPA |
| 649 | Rain sensor |
| 701 | Electrical distribution unit, boot |
| 710 | Boot lid opening motor relay |
| 753 | Control module, TPMS |
| Via Crimp connector J126, roof harness (cars with sunroof) | |
| 181B | Switch, electric sun roof without pinch protection |
| 182 | Unit, sunroof |
| Via Crimp J129, roof harness
connected to car: with sun roof: via crimp J126 without sun roof: via rear electrical centre 701 directly to G3/G29 |
|
| 30RC | Lamp, high-level brake light |
| 359LH | Lamp, make-up mirror lighting, left |
| 359RH | Lamp, make-up mirror lighting, right |
| 681 | Rear-view mirror, interior |
| 685F | Unit, dome light, front |
| 685R | Unit, dome light, rear |
| Via Crimp J141, main wiring harness 4D | |
| 55 | Lamp, boot lighting |
| 468 | Unit, telematics |
| 741LH | Microswitch, backrest, rear seat, left |
| 741RH | Microswitch, backrest, rear seat, right |
| Via Crimp J145, boot lid harness which is connected to Crimp J141, main wiring harness 4D | |
| 15 | Number plate light bulb |
| 54 | Boot lid switch |
| 418HL | Unit, light cluster, boot lid, left |
| 418HR | Unit, light cluster, boot lid, right |
| 622 | Microswitch, luggage compartment lock |
| 687H | Unit, central locking, boot lid |
| 691 | Unit, handle, boot lid |
| 757R | Relay, +15, REC |
