Crimp J222, rear harness, CV: Notes

Position: Approx. 120 mm from branching of left rear light cluster toward the luggage compartment lighting

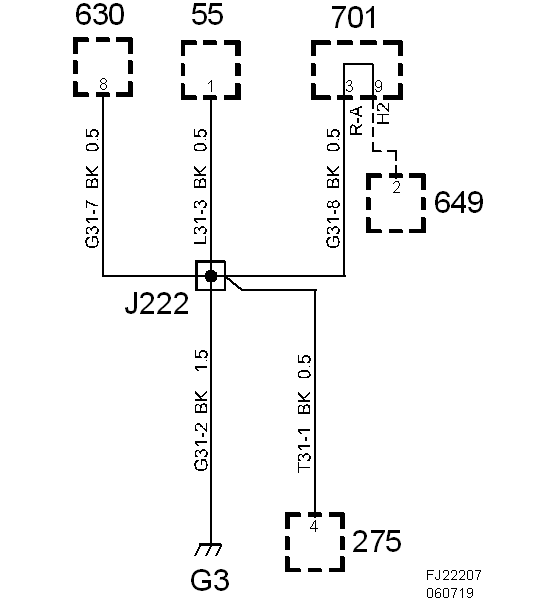

Fig 1: Crimp J222, Rear Harness, CV - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
