Crimp J147, main wiring harness 5D: Notes

Location:  Approx. 40 mm from branching point grounding point G29 towards right-hand light cluster

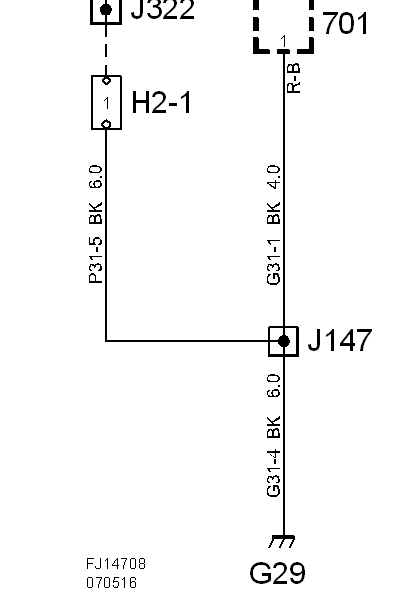

Fig 1: Crimp J147, Main Wiring Harness 5D - Wiring Diagram
G05551755Courtesy of SAAB-SCANIA OF AMERICA, INC.
