Crimp J141, main wiring harness 4D: Notes

Location:  Approx. 330 mm from branching point connector H10-6 towards the luggage compartment electrical centre

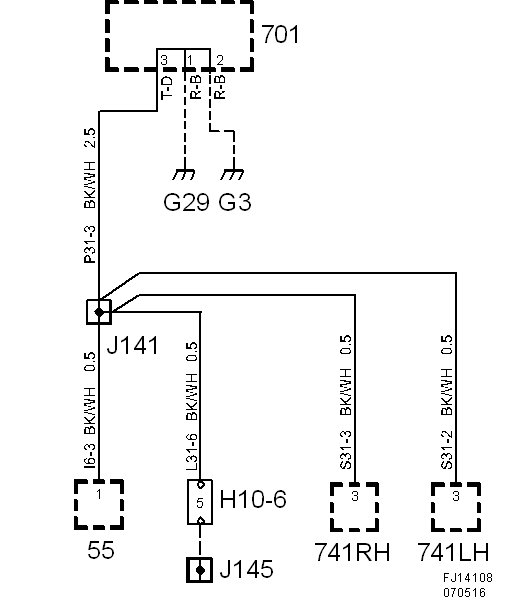

Fig 1: Crimp J141, Main Wiring Harness 4D - Wiring Diagram
G05551752Courtesy of SAAB-SCANIA OF AMERICA, INC.
