To remove

  1. Remove the battery
  2. Remove BATTERY COVER, BOTTOM .
  3. Z19:  Loosen the engine harness' cable tie (A).
    Fig 1: Identifying Engine Harness Cable Tie
    G05059971Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector from the reversing light switch (A)

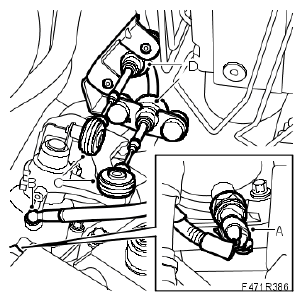

    Fig 2: Identifying Reversing Light Switch Connector, Gearbox Bleed Hose And Shift Arms
    G05059972Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the gearbox's bleed hose (B).
  6. Remove the gear cables:
    • Remove the gear cables from the shift arms (C).
    • Press the locking sleeves backward and remove the gear cable sheaths from the bracket (D).
  7. Blow clean around the selector unit
  8. Remove the selector unit:
    • The selector unit must be in neutral position to enable removal.
    • Remove the bolts and lift up the selector unit (A).
      Fig 3: Identifying Selector Unit With Mounting Bolts
      G05059973Courtesy of SAAB-SCANIA OF AMERICA, INC.
