To remove

  1. Release the upper ball section in the link arm.

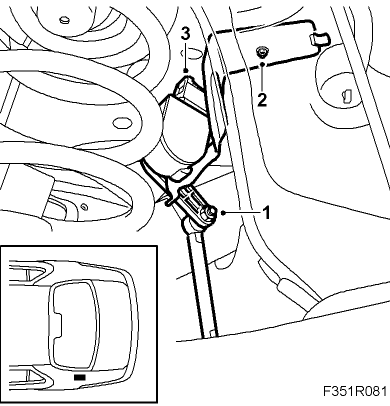

    Fig 1: Illustration For Steps 1-3
    G05055410Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the console and sensor.
  3. Separate connector.
