Adaptive forward lighting (AFL), main components

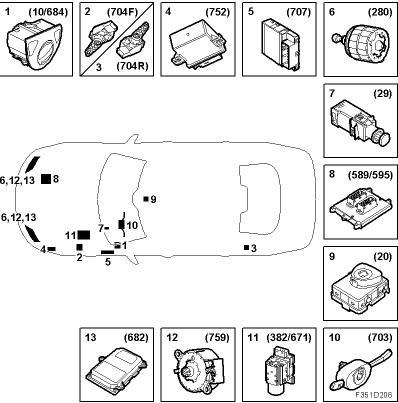

Fig 1: Identifying Adaptive Forward Lighting (AFL) Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Unit, light switch (10/684)
2. Tilt sensor, load, front (704F)
3. Tilt sensor, load, rear (704R)
4. AFL control module (752)
5. Body Control Module, BCM (707)
6. Motor, headlamp adjustment (280)
7. Brake light switch (29)
8. Engine Control Module (ECM)
9. Unit, ignition switch, ISM (20)
10. Column Integration Module, CIM (703)
11. Control module, TCS/ESP (382/671)
12. Stepper motor, AFL (759)
13. Electronics unit, AFL (682)
