Crimp connection J9, front harness: Notes

Location:  Approx. 150 mm from branching of grounding point G31 towards the left headlamp

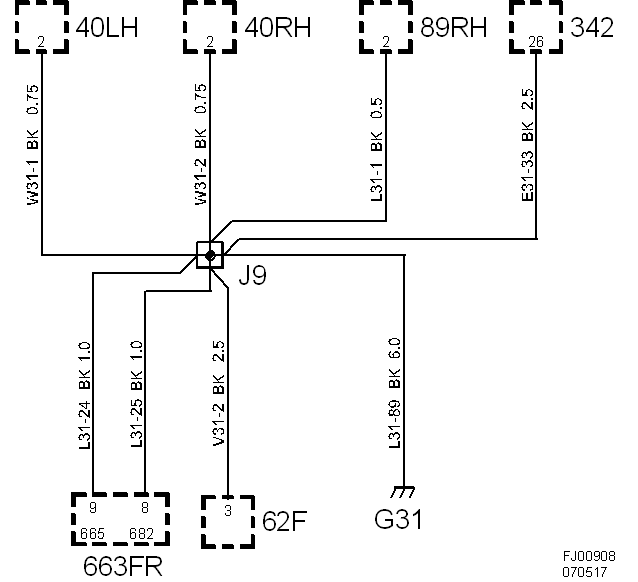

Fig 1: Crimp Connection J9, Front Harness - Circuit Diagram
G05550905Courtesy of SAAB-SCANIA OF AMERICA, INC.
