Crimp connection J111, main harness: Notes

Location:

4D/CV:  --

5D:  In the branching of connector H102-1

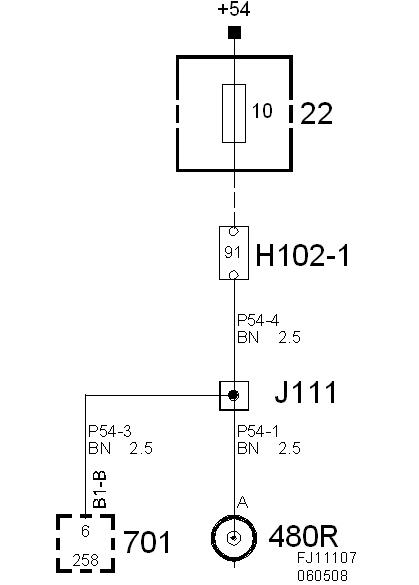

Fig 1: Crimp Connection J111, Main Harness - Circuit Diagram
G05550917Courtesy of SAAB-SCANIA OF AMERICA, INC.
