Crimp connection J1, front harness: Notes

Location:  Approx. 210 mm from branching of grounding point G30 towards the left headlamp

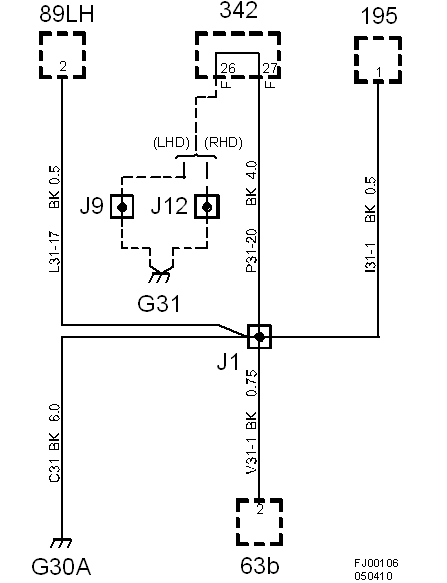

Fig 1: Crimp Connection J1, Front Harness - Circuit Diagram
G05550903Courtesy of SAAB-SCANIA OF AMERICA, INC.
