Crimp J321, tailgate 5D: Notes

Location:  Approx. 230 mm from branching point high level brake light towards speakers

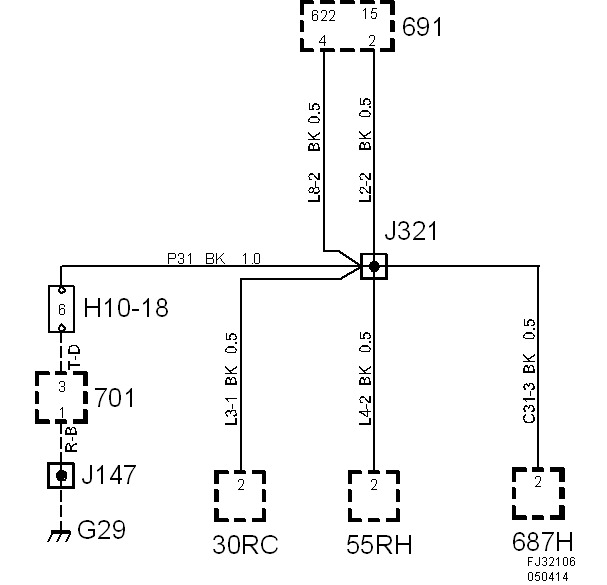

Fig 1: Crimp J321, Tailgate 5D - Circuit Diagram
G05550932Courtesy of SAAB-SCANIA OF AMERICA, INC.
