Crimp J21, front harness: Notes

Location:  Approx. 270 mm from branching of grounding point G30 towards the right headlamp

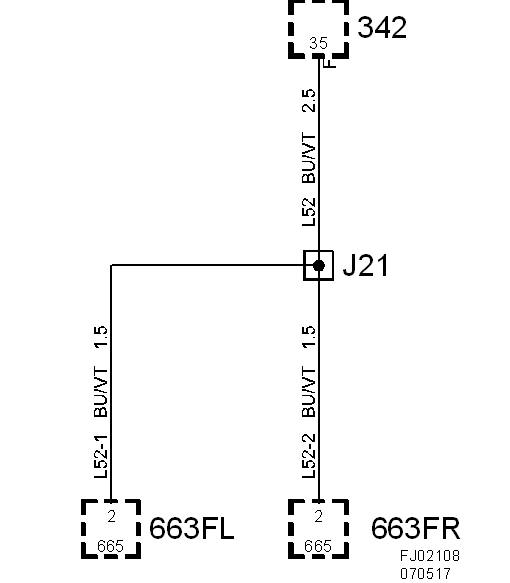

Fig 1: Crimp J21, Front Harness - Circuit Diagram
G05550910Courtesy of SAAB-SCANIA OF AMERICA, INC.
