Crimp J18, front harness: Notes

Location: Approx. 140 mm from contact of left headlamp

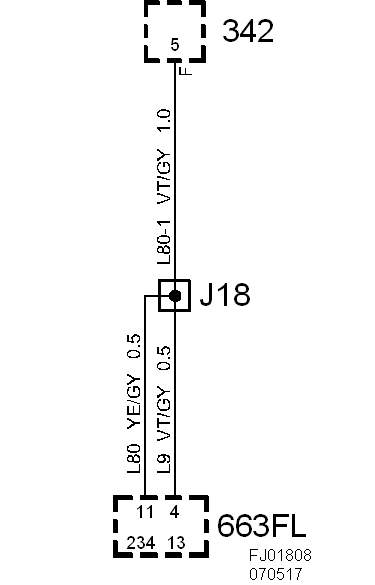

Fig 1: Crimp J18, Front Harness - Circuit Diagram

G05550907

Courtesy of SAAB-SCANIA OF AMERICA, INC.
