Bootlid handle module (691)

Location:  on the bootlid

4D/CV

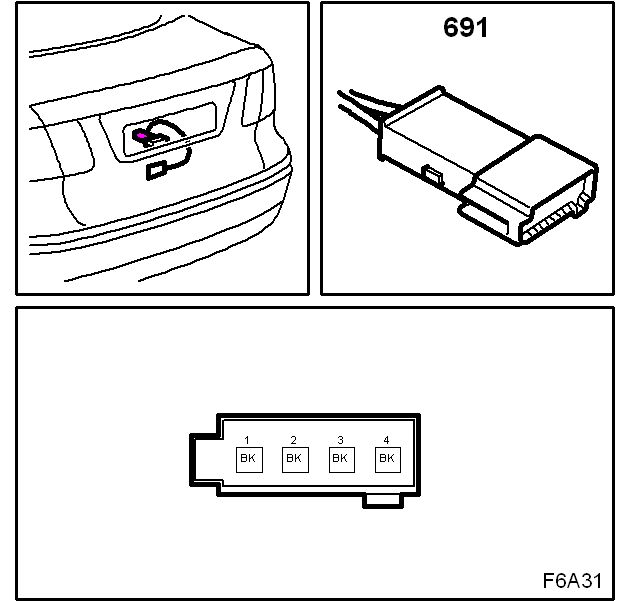

Fig 1: Identifying Bootlid Handle Module (691) Location - 4D/CV
G05055078Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

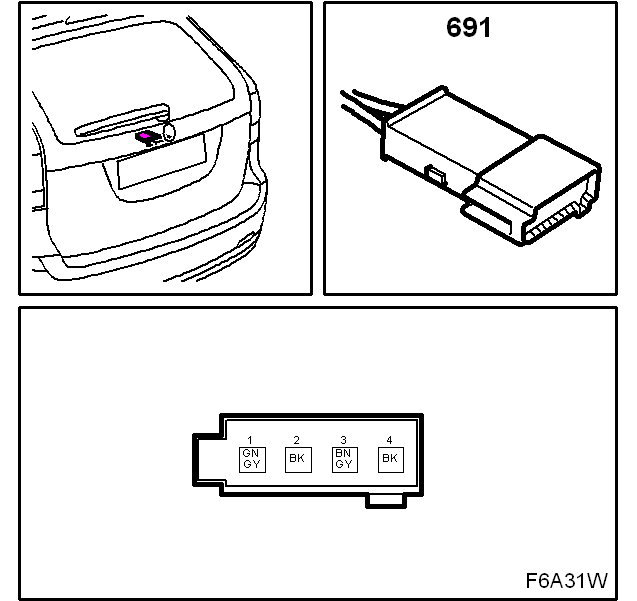

Fig 2: Identifying Bootlid Handle Module (691) Location - 5D
G05055079Courtesy of SAAB-SCANIA OF AMERICA, INC.
