Instrument panel electrical centre 22 (IPEC): Connect

The 16 pin connector from the BCM 707 control module is connected directly to the electrical centre.

The electrical centre is fed with +30 voltage from the engine bay electrical centre 342 and is connected to the dashboard harness via a 42 pin connector.

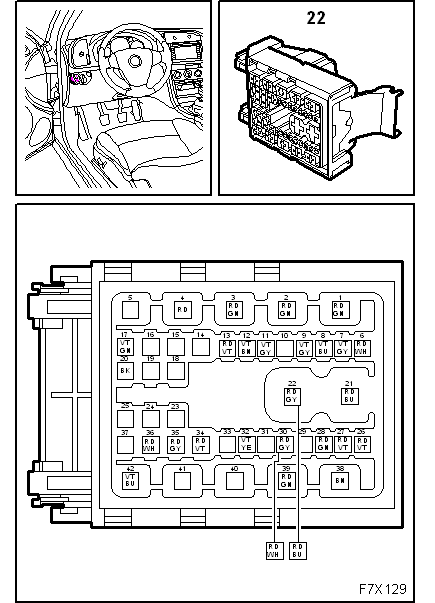

Fig 1: Identifying Instrument Panel Electrical Centre 22 (IPEC) Connector Pinouts
G05174120Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following current circuits are distributed by the electrical centre:

  1. Power supply +30, dashboard's electrical centre
  2. Power supply +15, dashboard's electrical centre
  3. Power supply +54, dashboard electrical centre. See POWER DISTRIBUTION .
