Headlamp levelling switch (282)

Location:  in the light switch unit between the steering wheel and driver's door

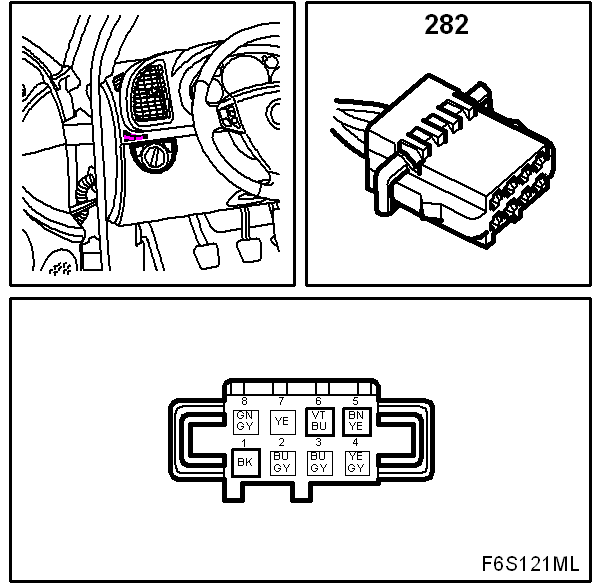

Fig 1: Identifying Headlamp Levelling Switch (282) Connector Pinouts
G05055031Courtesy of SAAB-SCANIA OF AMERICA, INC.
