Crimp J322, tailgate 5D: Notes

Location:  Approx. 360 mm from branching point high level brake light towards speakers

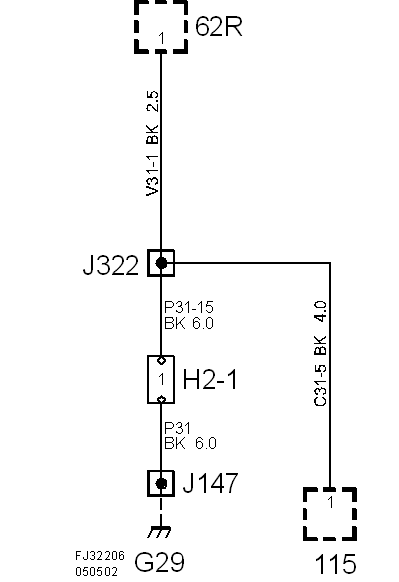

Fig 1: Crimp J322, Tailgate 5D - Circuit Diagram
G05570639Courtesy of SAAB-SCANIA OF AMERICA, INC.
