To remove

  1. Open the window fully.
  2. Remove Door trim, rear and fold down the water barrier. See DOOR TRIM, REAR .
  3. Remove the window frame cover. See WINDOW FRAME COVER, REAR .
  4. Remove the outer weatherstrip using 82 93 474 REMOVAL TOOL .
    Fig 1: Identifying Outer Weatherstrip
    G05064898Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Pull up the U-moulding of the forward glass channel.

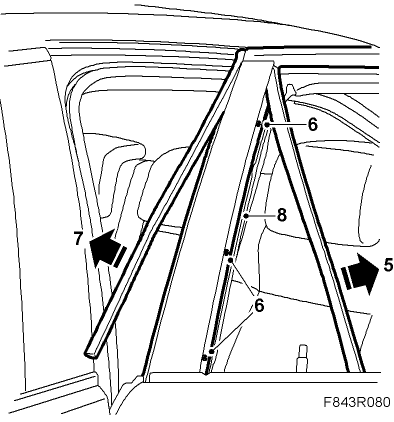

    Fig 2: Illustration For Step 5-8
    G05064899Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the screws from the forward glass channel.
  7. Remove the forward side moulding.
  8. Lift up the forward glass channel.
  9. Operate the window upwards in order to gain access to the window bolts. Remove the side window bolts.

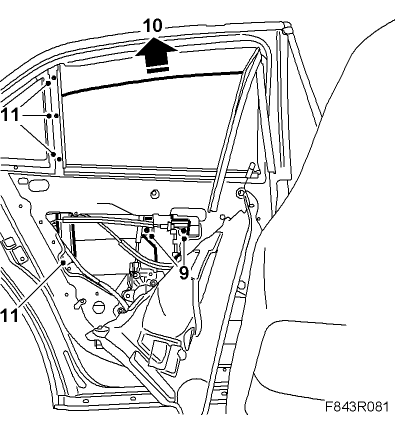

    Fig 3: Illustration For Step 9-11
    G05064900Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Lift out the side window.
  11. Remove the screws securing the rear glass channel.
  12. Remove all of the upper rubber strip.

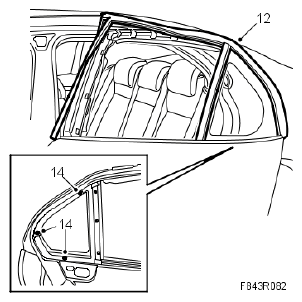

    Fig 4: Illustration For Step 12, 14
    G05064901Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Remove the rear glass channel along with the rubber moulding.
  14. Remove the fixed side window by remove the bolts and retainer securing the window frame cover.
