To fit

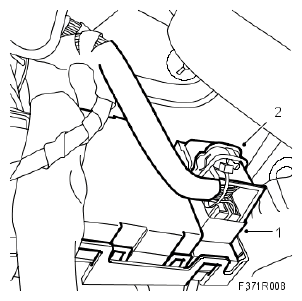

- Fit the control module.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT:
Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
- Plug in the connector.
- Fit the lower section of the dashboard. See SOUND INSULATION PANEL, PASSENGER
.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- If the control module has been replaced:
Carry out procedures after changing a control module .
