Crimp J69, instrument harness: Notes

Location:

LHD:  Approx. 140 mm from branching point light switch unit towards the column integration module

RHD:  Approx. 170 mm from connector H33-1

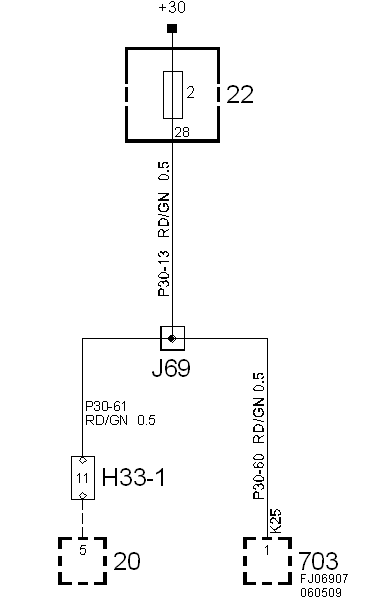

Fig 1: Crimp J69, Instrument Harness - Wiring Diagram
G05551745Courtesy of SAAB-SCANIA OF AMERICA, INC.
