Crimp J108, main wiring harness: Notes

WARNING: This page is about a different variant/trim than selected.

Location:

4D:  in branching point grounding point G34

5D:  Approx. 50 mm from branching point to grounding point G34P/S towards front right door

CV:  Approx. 80 mm from branching point to grounding point G34P/S towards connector H33-4

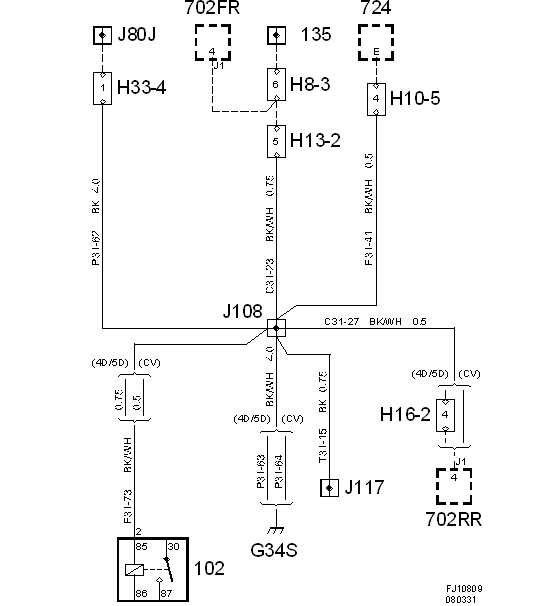

Fig 1: Main Wiring Harness - Schematic Diagram (Crimp J108)
G06234724Courtesy of SAAB-SCANIA OF AMERICA, INC.
