Home >> Saab >> 2009 >> 9-3 2.0T, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Repair Instructions >> Pressure monitor, engine oil (44) >> To remove

To remove

  1. Remove the upper engine cover.

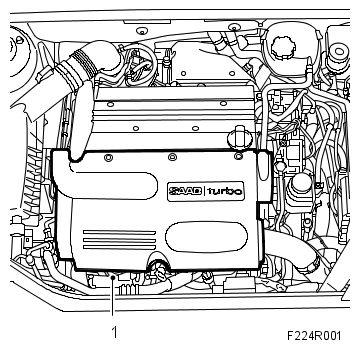

    Fig 1: Identifying Upper Engine Cover
    G06230233Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Place a receptacle to collect spilled oil.
  3. Unplug the connector.

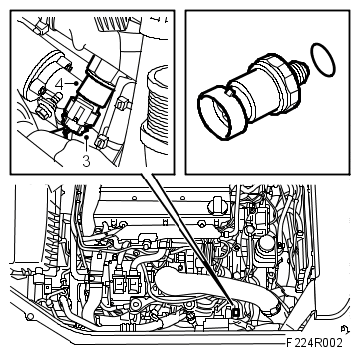

    Fig 2: Illustration For Steps 3-4
    G06230234Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the oil pressure switch. Tool 83 95 187 (27 mm fitting).
