Home >> Saab >> 2009 >> 9-3 2.0T, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Repair Instructions >> Crankshaft position sensor (345) >> To remove

To remove

  1. Remove the upper engine cover.

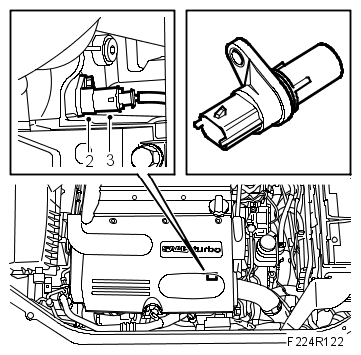

    Fig 1: Illustration For Steps 2-3
    G06230277Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the crankshaft position sensor.
  3. Unplug the crankshaft position sensor connector.
