Motor, fuel pump (323)

Location:  integrated in the fuel pump unit 689

Petrol, US/CA market

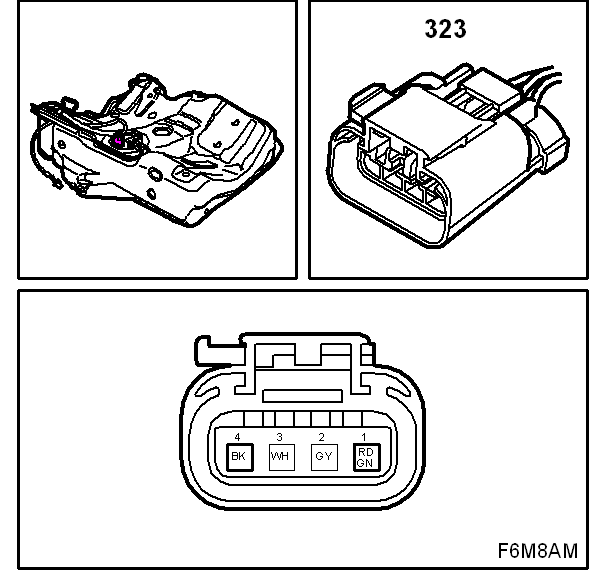

Fig 1: Identifying Motor, Fuel Pump (323) - Petrol, US/CA Market
G05052208Courtesy of SAAB-SCANIA OF AMERICA, INC.

Petrol, other markets

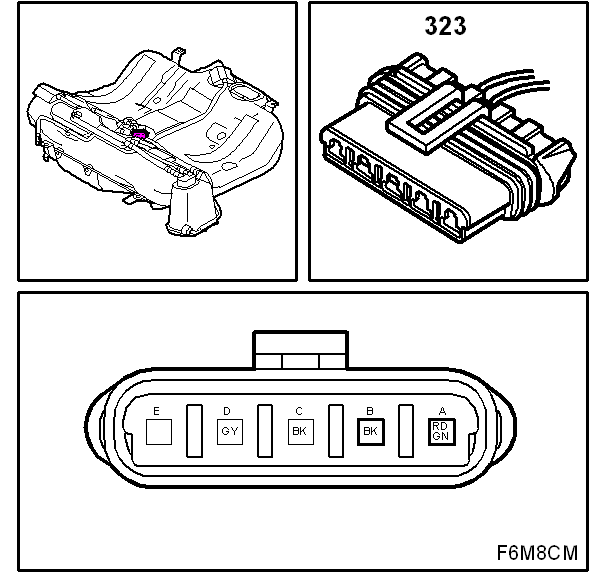

Fig 2: Identifying Motor, Fuel Pump (323) - Petrol, Other Markets
G05052209Courtesy of SAAB-SCANIA OF AMERICA, INC.
