Component Locator - Control Modules
>>
Light switch, (10)
Light switch, (10)
Location:
in the light switch unit between the steering wheel and driver's door

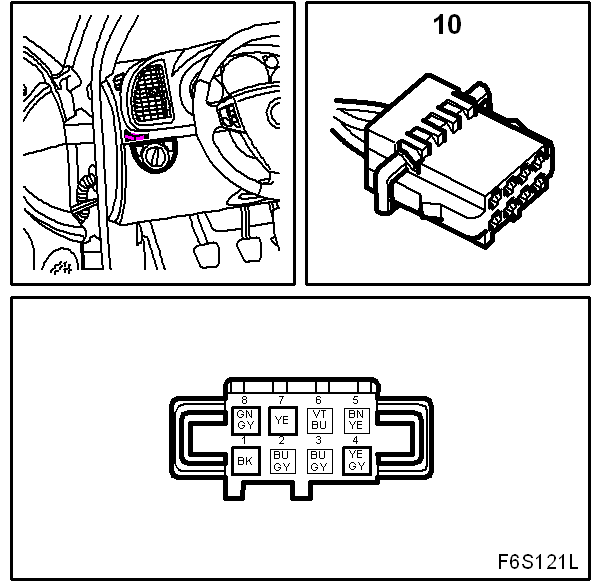

Fig 1: Identifying Light Switch, (10) Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
