AFL control module (752)

Location: behind the left headlamp unit

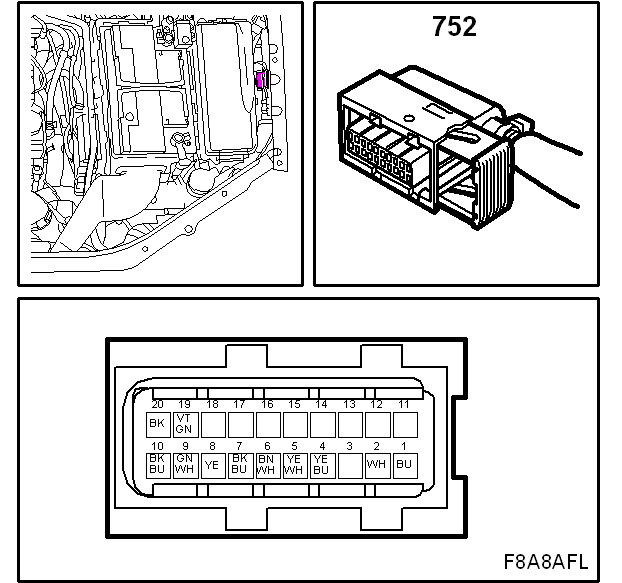

Fig 1: Identifying AFL Control Module (752) Connector Pinouts

G05571379

Courtesy of SAAB-SCANIA OF AMERICA, INC.
