Crimp J231, adapter harness, Simtec: Notes

Location:  Approx. 80 mm from branching of connector H10-15 towards the battery

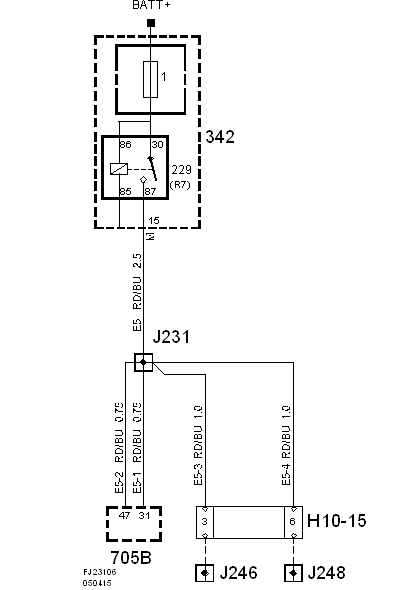

Fig 1: Crimp J231, Adapter Harness, Simtec - Circuit Diagram
G05570584Courtesy of SAAB-SCANIA OF AMERICA, INC.
