General data

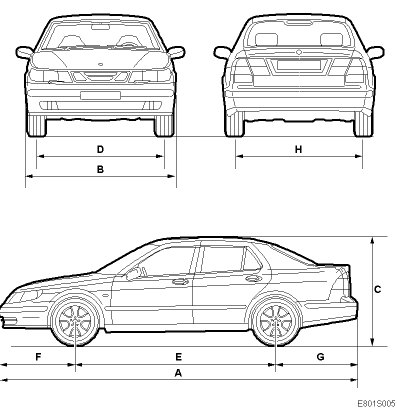

VEHICLE DATA REFERENCE
| A | Overall length | mm | 4D:
4827 5D: 4828 |
| B | Overall breadth | mm | 1792 (incl. door mirrors: 2042) |
| C | Greatest height | mm | 4D:
1475 5D: 1501 |
| Ground clearance at GVW | mm | approx. 116 | |
| D | Track, front | mm | 1522 |
| H | Track, rear | mm | 1522 |
| E | Wheelbase | mm | 2703 |
| F | Overhang, front | mm | 1016 |
| G | Overhang, rear | mm | 4D:
1108 5D: 1109 |
| Turning circle (kerb to kerb) | m | 11.3 | |
| Turning circle (measured at vehicle extremities) | m | 11.9 | |
| Kerb weight | kg (lb) | 4D:
1525-1685 (3362-3715) 5D: 1590-1760 (3505-3880) |
|
| Gross vehicle weight | kg (lb) | 4D:
2050-2130 (4519-4695) 5D: 2130-2210 (4695-4872) |
|
| Max. axle load, front | kg (lb) | 1175 (2590) | |
| Max. axle load, rear | kg (lb) | 4D:
1050 (2315) 5D: 1125 (2480) |
|
| Max. roof load | kg (lb) | 100 (220) | |
| Max. trailer weight (braked trailer) | kg (lb) | 1800 (3970) |
