Trionic T7 Engine Management System 4-Cyl (Part 4/4): Notes

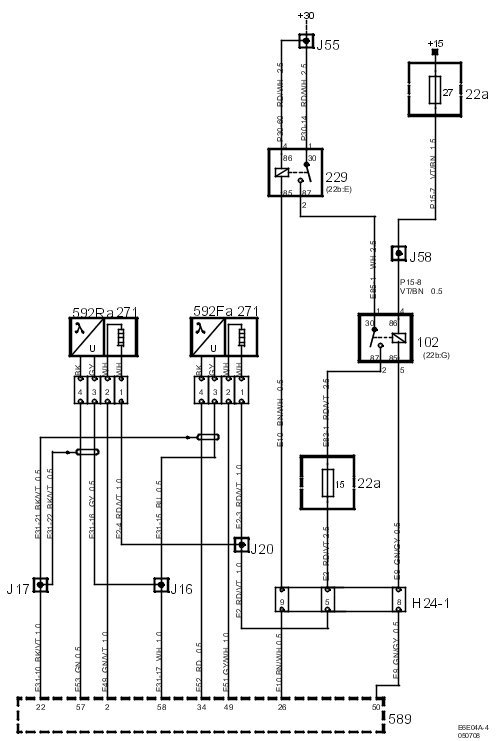

Fig 1: Schematic Diagram For Trionic T7 Engine Management System 4-Cyl (Part 4/4)

G05036960

Courtesy of SAAB-SCANIA OF AMERICA, INC.
