To remove

  1. Lower the cover (A) for the data link connector.

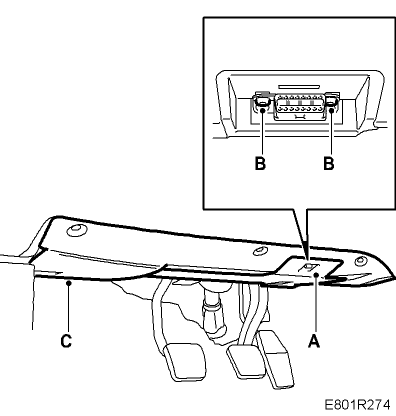

    Fig 1: Identifying Cover And Screws
    G05035831Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unscrew the screws (B) in the data link connector.
  3. Undo the screws and the clip that secures the lower panel with the air duct (C).
  4. Unplug the connector (A) for the floor lighting.

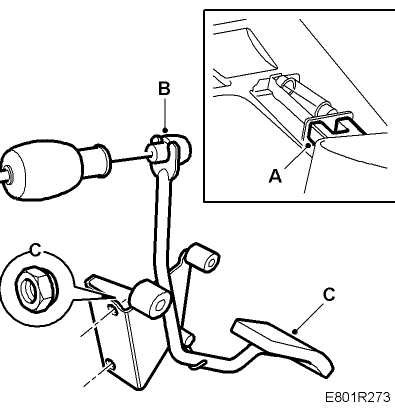

    Fig 2: Identifying Connector, Accelerator Cable And Pedal
    G05035832Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift away the lower panel.
  6. Undo the accelerator cable (B) from the accelerator pedal by moving the bushing backwards and then unhooking the cable and bushing.
  7. Remove the pedal (C).
