To remove

  1. Pull the steering wheel forward to its outer position.
  2. Remove the steering column's protective covers (3 screws).

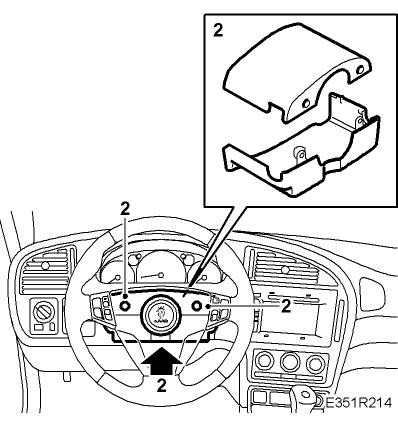

    Fig 1: Illustration For Step 2
    G05036140Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull out the light switch (2 clips).

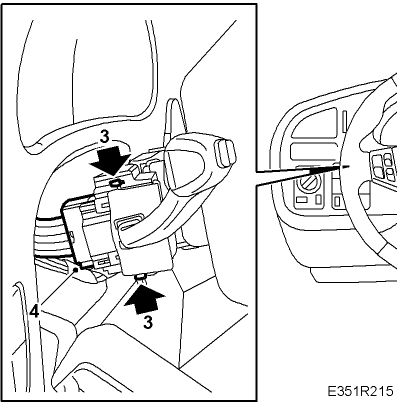

    Fig 2: Illustration For Steps 3-4
    G05036141Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector.


  1. Remove the electrical center cover.

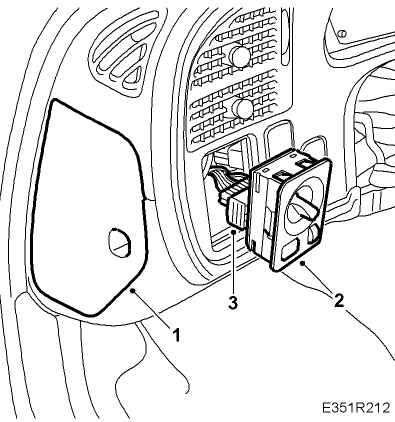

    Fig 1: Illustration For Steps 1-3
    G05036144Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press the switch out from the inside with your hand in through the hole at the electrical center.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  3. Remove the connector.
