Interior lighting: Notes

The car's interior lighting is switched on and off automatically or manually depending on the setting of the selector switch (1-0-2). The selector has the following functions:

1 - Interior lighting on.

0 - Automatic switching

2 - Interior lighting off.

Fig 1: Interior Lighting - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

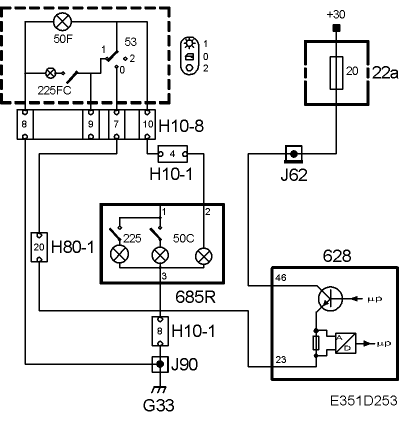

Fig 2: Interior Lighting - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
