Battery shelf: Refitting

  1. Fit the battery shelf

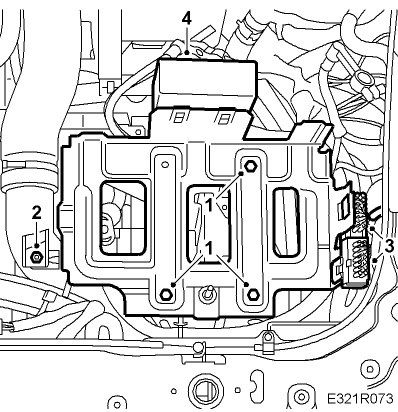

    Fig 1: Illustration For Steps 1 To 4
    G05035942Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the charge air pipe nut.
  3. Fit the connector to the battery shelf.
  4. Fit the fuse holder
  5. Replace the battery and assemble the clamp and nut.
    Fig 2: Illustration For Steps 5 To 7
    G05035943Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Attach the negative battery cable.
  7. Attach the negative battery cable.
