To remove

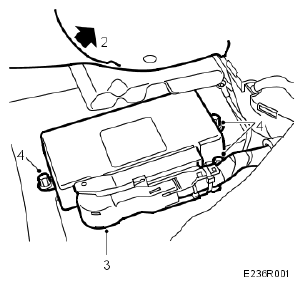

Fig 1: Illustration For Steps 2-4
G05037595Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Detach and lift away the LH front seat
  2. Lift and fold aside the carpet. Remove the plastic molding as needed.
  3. Unplug the connector to the module.
  4. Remove 3 plastic nuts and lift out the module.
