To remove

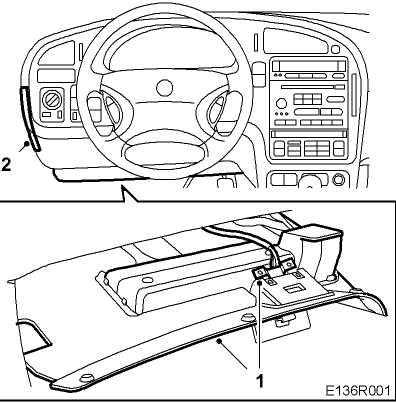

Fig 1: Illustration For Steps 1-2
G05122228Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove lower panel from driver's side.
  2. Remove the fuse cover (To be better able to see what you're doing).

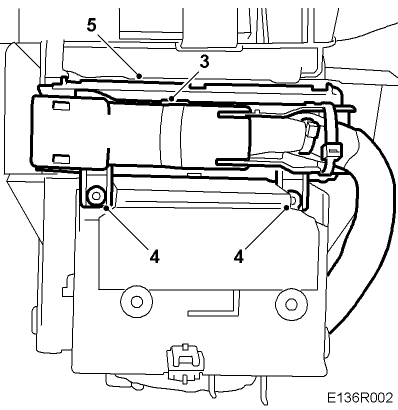

    Fig 2: Illustration For Steps 3-5
    G05037476Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector from on the control module.
  4. Remove 2 screws (Torx 25) holding DICE.
  5. Pull the DICE control module straight out.
