Home >> Saab >> 2008 >> 9-3 2.0T, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System, 4-Cylinder >> Component Locator >> Grounding point G34P >> Notes

Grounding point G34P: Notes

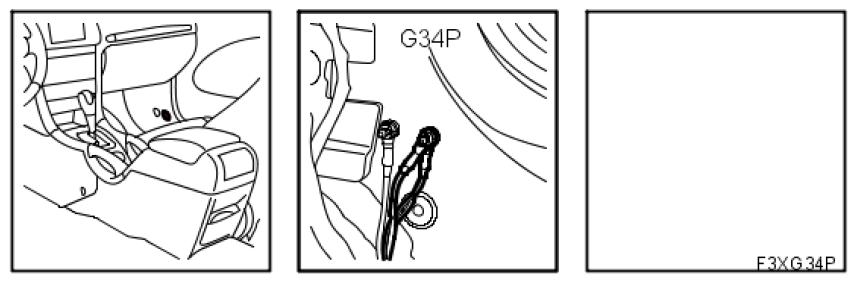

Fig 1: Identifying Grounding Point G34P

G05548079

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: By the floor below the right A-pillar (black tape)
