Saab
>>
2008
>>
9-3 2.0T, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Lighting And Signaling Systems
>>
Component Locator - Control Modules
>>
Right headlamp (663FR)
Right headlamp (663FR)
Location:
by the right side of the radiator

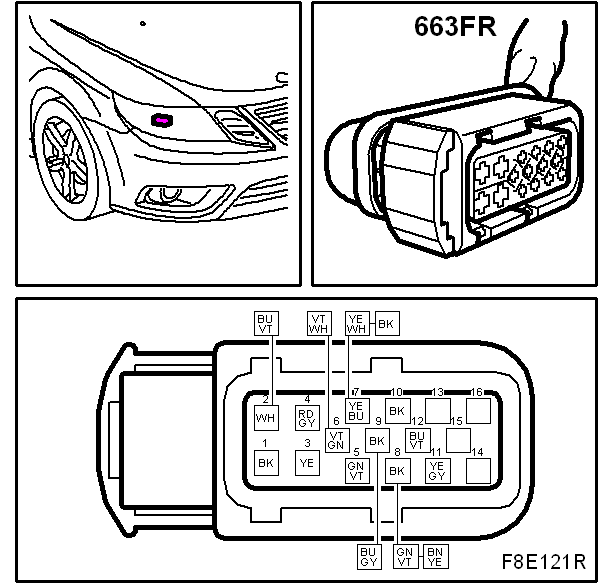

Fig 1: Identifying Right Headlamp (663FR) Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
