Remote Function Schematics

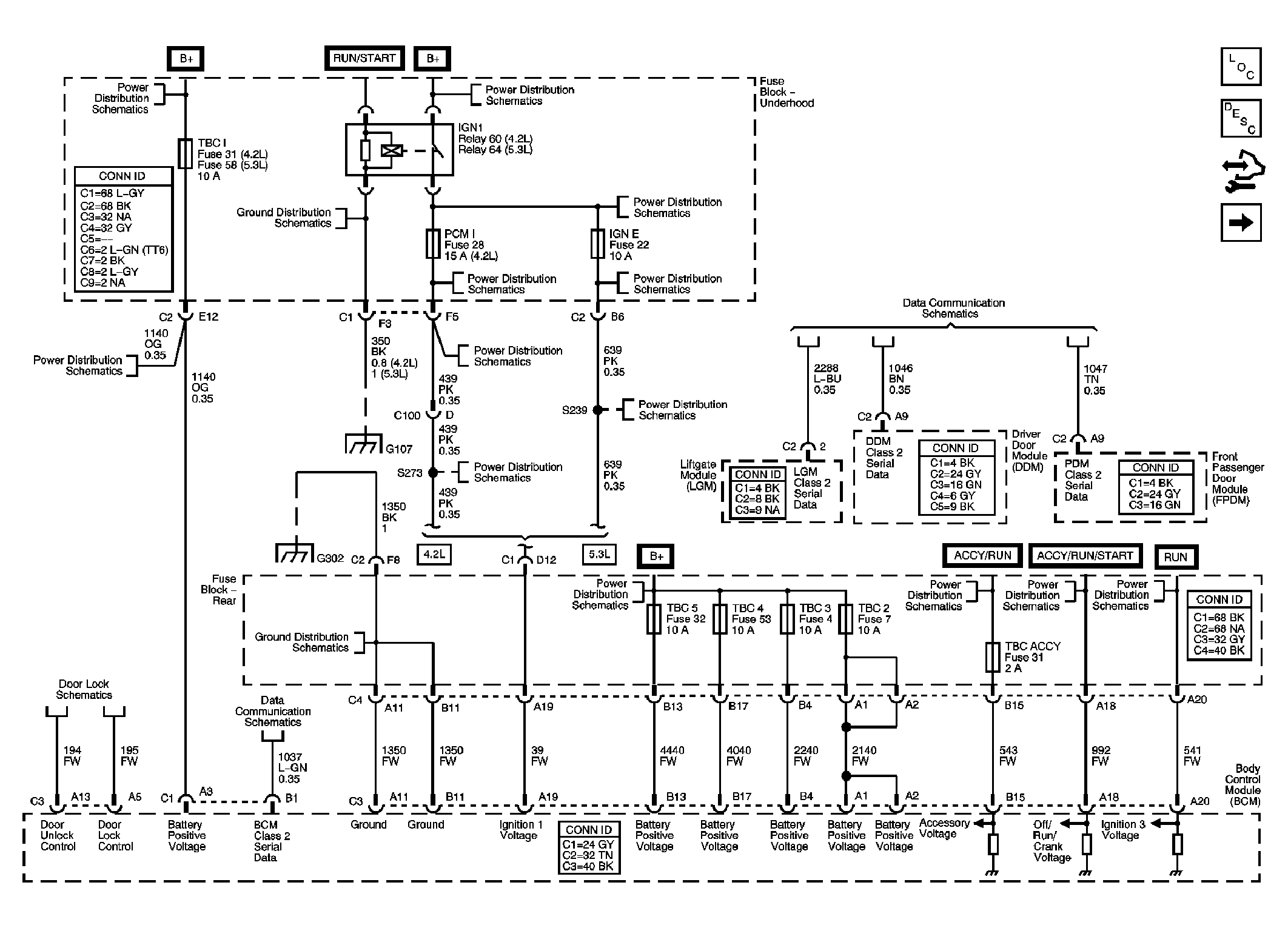

Fig 1: Keyless Entry
Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener - UG1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
