To remove

IMPORTANT:

Scrupulous cleanliness must always be observed during all work with hydraulic components.

  1. Drain the power steering fluid reservoir, using oil suction equipment.
  2. Undo and lift aside the reservoir.

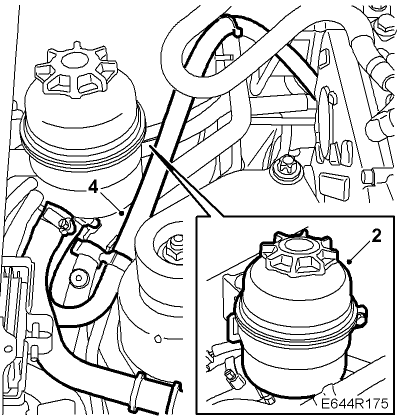

    Fig 1: Illustration For Steps 2-4
    G05041747Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Clean carefully around the return hose connection to the power steering fluid reservoir.
  4. Remove the return hose from the power steering fluid reservoir.
  5. Raise the car.
  6. Diesel:  Remove the lower engine cover.
    Fig 2: Illustration For Step 6
    G05041748Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. LHD:  Cut off the cable tie holding the return line to the steering gear.
  8. Place a receptacle under the car and remove the return hose from the steering servo.
    Fig 3: Illustration For Step 8
    G05041749Courtesy of SAAB-SCANIA OF AMERICA, INC.
