To fit

Connect the line to the steering gear.
NOTE:
Use new seals with the banjo connector.

Tightening torque 30 Nm (22 lbf ft)

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
LHD: Fasten the return line to the delivery line with two cable ties.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

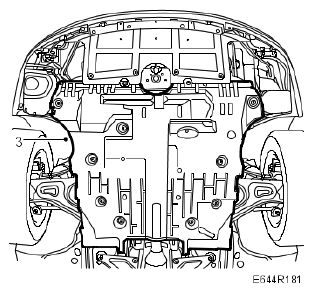

Diesel : Refit the lower engine cover.

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lower the car and fit a clip around the line and the A/C lower pressure pipe. Also fit a clip to the delivery hose.

Fig 4: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect and fasten the line to the power steering fluid reservoir. Ensure that the white line on the line is aligned with the arrow on the reservoir.

Fig 5: Illustration For Steps 5 And 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the steering servo reservoir.
Fasten the return line to the suspension strut tower with a cable tie.
Bleed the power steering system see BLEEDING THE POWER STEERING SYSTEM .
