To remove

  1. Petrol  : Remove the plastic rivets and bolts holding the bumper shell to the radiator member and remove the bolts at the wheel arch liners. Release the catch with a screwdriver and pull out the bumper shell on the left side. Remove the bolt of the air intake and the bolt of the left horn bracket. Lift the air intake out of its mounting.

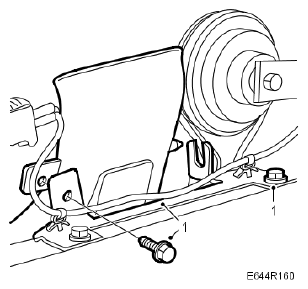

    Fig 1: Illustration For Step 1
    G05041732Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Raise the car.
  3. Remove the forward engine cover.

    Diesel  : Remove the lower engine cover.

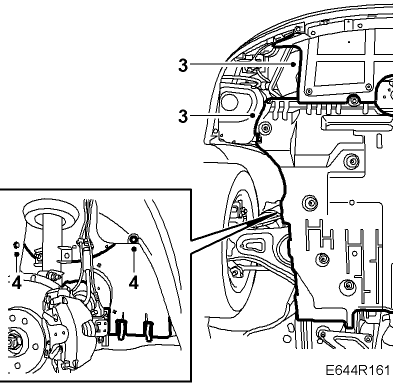

    Fig 2: Illustration For Steps 3-4
    G05041733Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the RH engine cover.
  5. Petrol:  Undo the 2 engine oil cooler bolts and let the cooler hang by its hoses.
    Fig 3: Illustration For Step 5
    G05041734Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Petrol:  Loosen the hose clip securing the hose for the air intake to the air filter holder and remove the air intake.

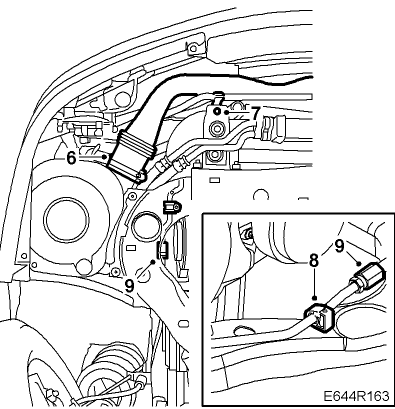

    Fig 4: Illustration For Steps 8-9
    G05041735Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Undo the nuts which hold the cooling loop to the radiator mount.
  8. Remove the clamp from the front delivery line.
  9. Place a bowl under the car to collect the power steering fluid. Separate the front and rear delivery pipes at the joint.
  10. Lower the car to the floor.
  11. Petrol:  Undo the hose clip which retains the intake hose with the mass air flow sensor and bend the hose to one side.
    Fig 5: Illustration For Step 11
    G05041736Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Petrol:  Relieve the tension in the belt tensioner with tool see 83 95 254 . Rotate the power steering pump pulley to gain access to the bolt and detach the front delivery line bracket.

    Remove the pipe from the pump.

    Fig 6: Illustration For Step 12
    G05041737Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Diesel:  Detach the delivery line from the power steering pump using see 32 025 061 CROW FOOT SPANNER .
    Fig 7: Illustration For Step 13
    G05041738Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Raise the car.
  15. Angle the cooling loop downward on the front delivery line so that all of the front delivery line can be removed.
    IMPORTANT:

    Scrupulous cleanliness must always be observed during all work with hydraulic components.
